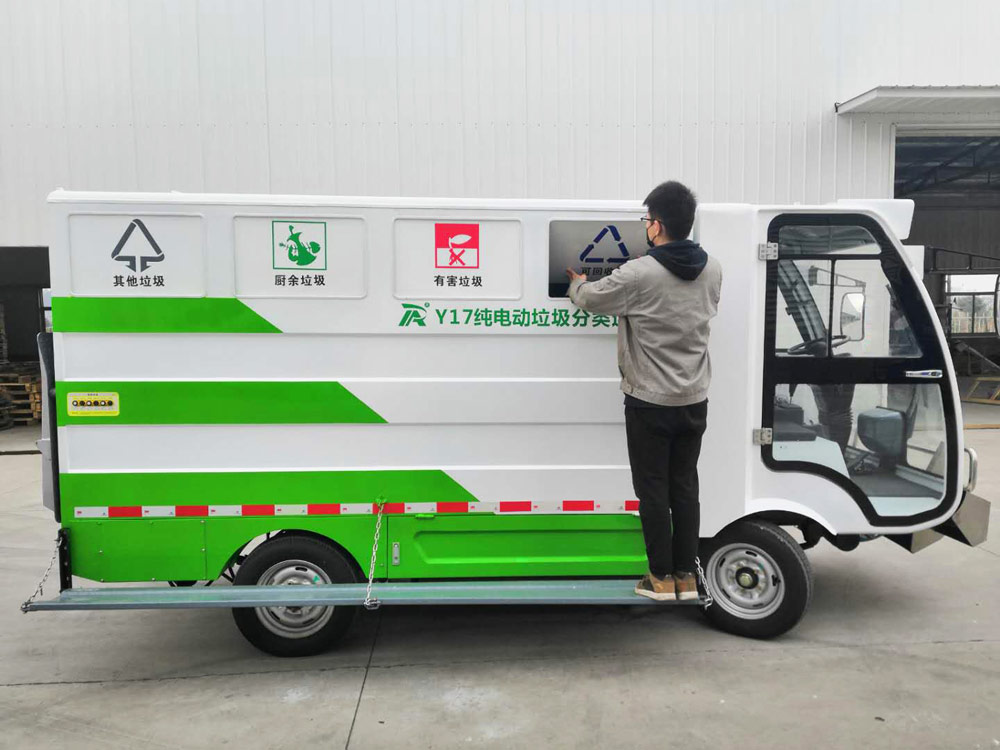

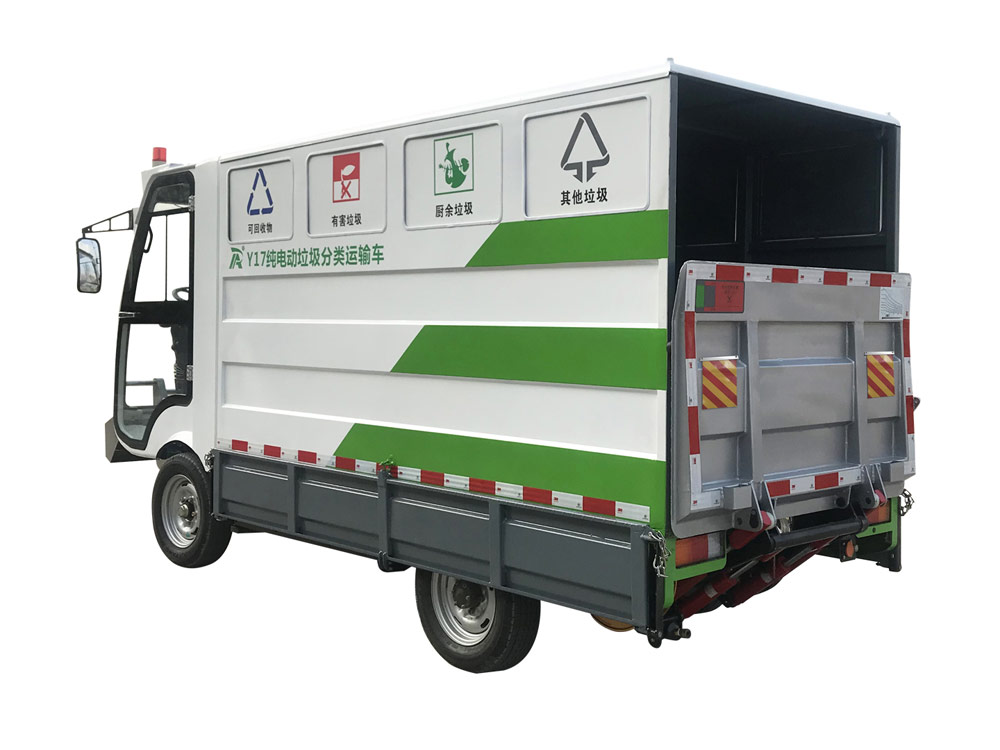

Ruibao y17 pure electric garbage collection and transportation vehicle is mainly used in streets, business districts, property districts, towns, scenic spots, schools and other places for regular and fixed-point classification, collection and transportation of four types of garbage. It is pure electric operation, low cost and zero emission. European configuration, excellent performance.

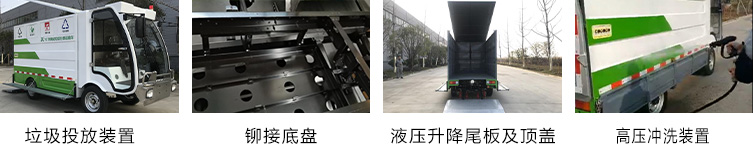

◆ Chassis: the overall riveted chassis of the vertical and horizontal beams of the frame is made of truck special steel plate, with high strength, strong bearing capacity, electrophoresis antirust treatment and corrosion resistance

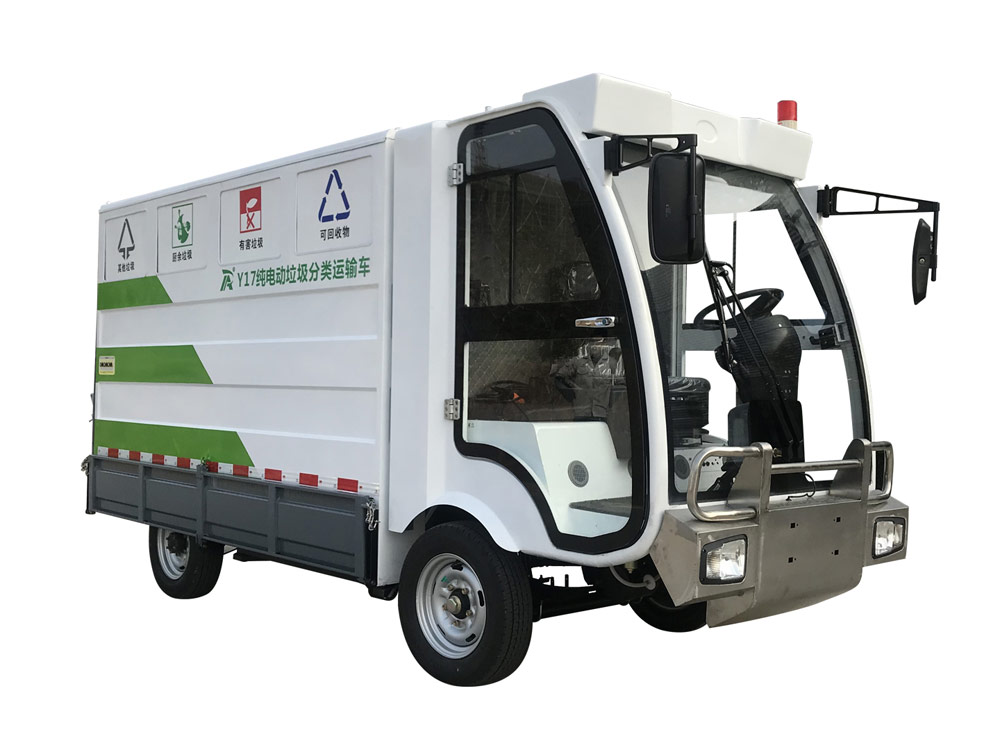

◆ Body: fully enclosed cab, three full glass transparent, double door, front stainless steel bumper, high-quality high-strength metal body, good working sight, safe and beautiful
◆ High grade image, leather and soft interior
◆ Drive: 192 full floating electric differential rear axle drive, stepless speed change
◆ Battery: 12 * 6V / 200ah maintenance free lead acid batteries and 72V / 250ah lithium battery pack

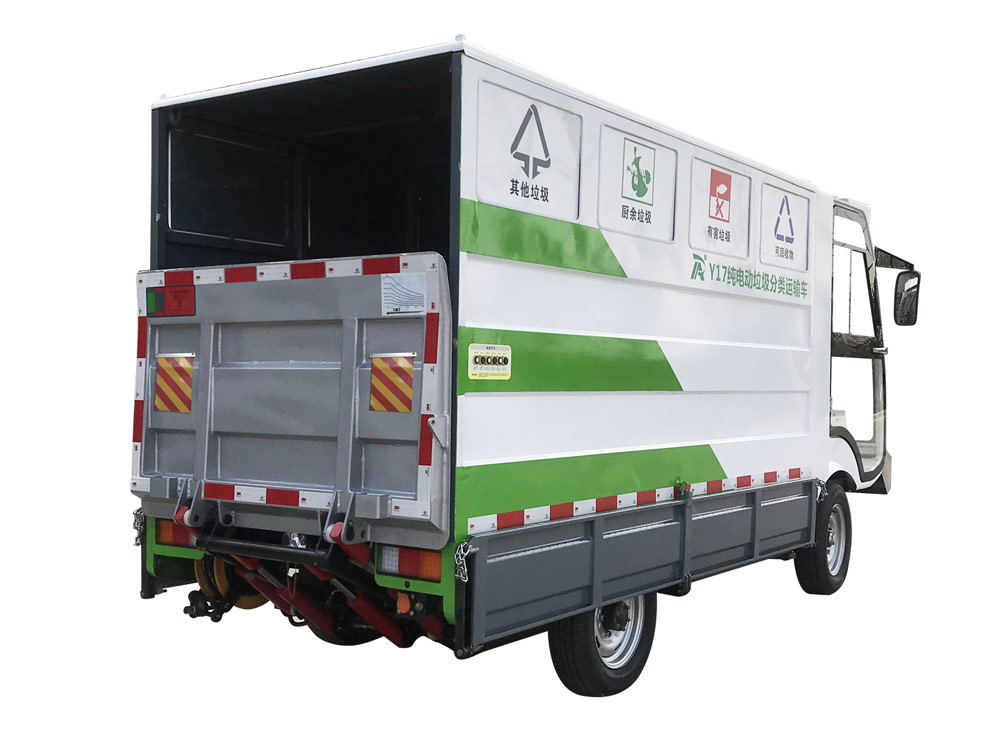

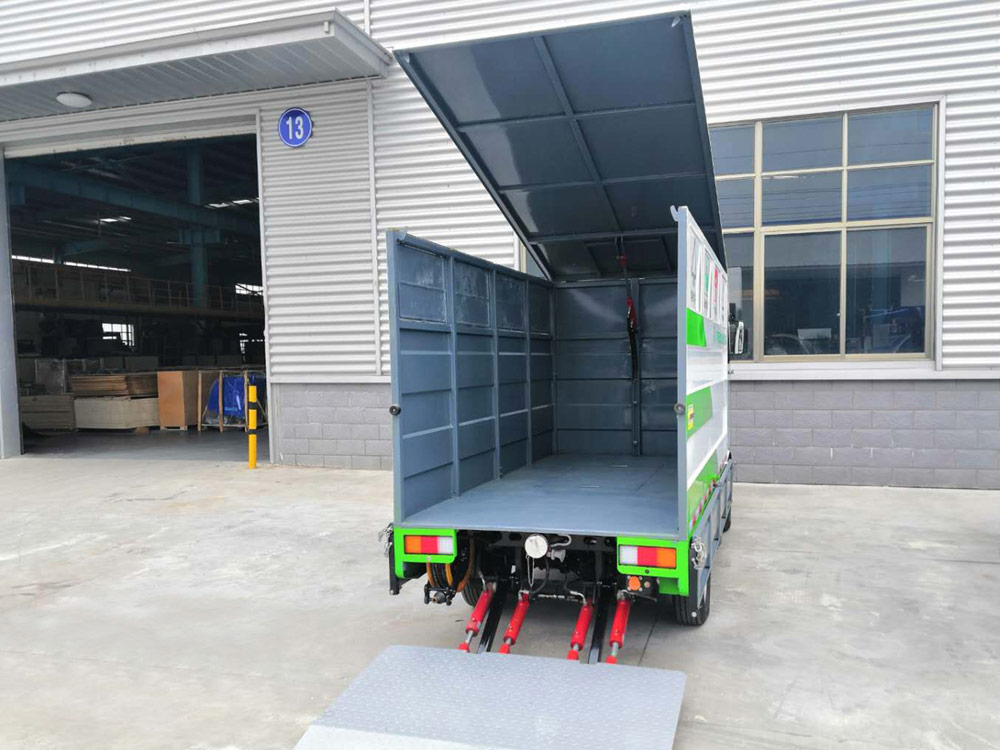

◆ Hydraulic system: 72V DC motor double cylinder four-bar hydraulic device, which can be operated by wire or wireless remote control to control the tailboard operation. The top cover is hydraulically lifted, which is firm and safe

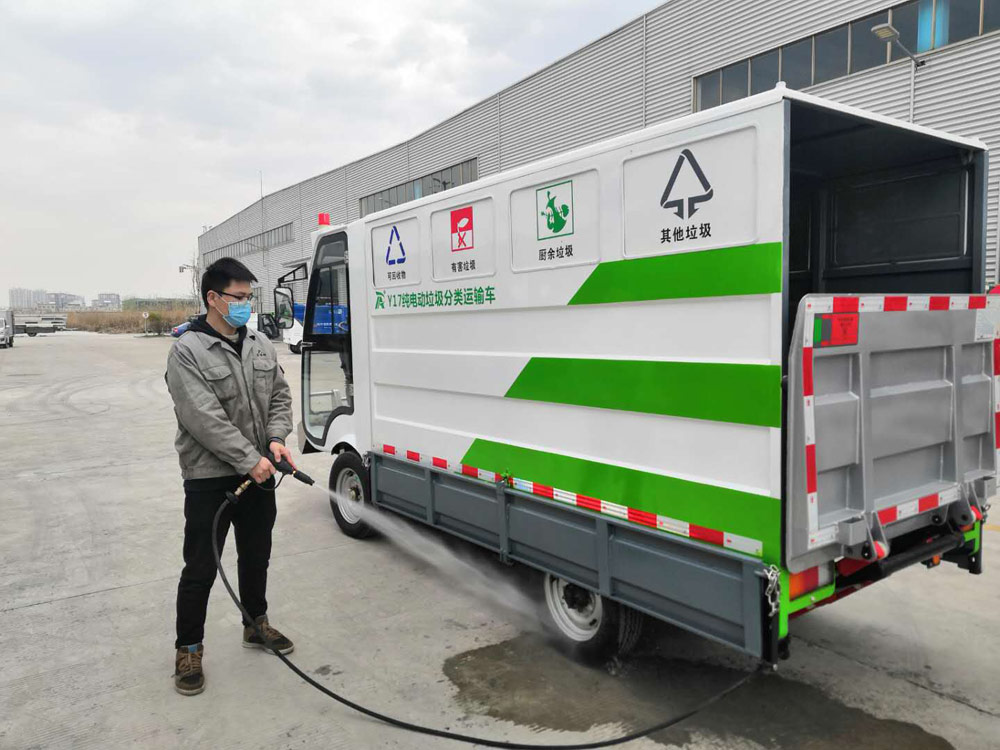

◆ Flushing device: rear electric high pressure flushing system, which can be used to clean garbage cans and vehicles
◆ Seat: European standard E-MARK certified damping seat, with gravity sensing device, strong safety
◆ Brake system: high power front drum rear drum double circuit vacuum hydraulic brake system and independent parking brake
◆ Steering system: high power circulating ball integrated electric power steering system
◆ Tire: four wheel 175r14 radial brand vacuum tire, wear resistance, long service life
◆ Temperature control system: cold and warm air conditioning (limited to lithium battery version)
| Parameters | Ruibao y17 pure electric garbage truck |
| Voltage / rated power | 72V/7.5Kw |
| Mileage | ≥100Km |
| Number of barrels | 8only（240LFour classification standard trash can） |
| Rated load | 1600kg |
| Maximum driving speed | 35Km/h |
| braking distance | ≤4m |
| Climbing ability | ≥30% |
| Turning radius | ≤6m |
| Dimensions | 4700*1530*2230mm |
| Volume of clear water tank | 60L |
| Pump pressure | 0-8Mpa |
| Net weight | 2200kg（Lead acid）、1800kg（Lithium battery） |
| Number of passengers allowed | 2 people |
